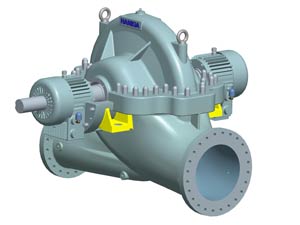

DSP type axially split case double suction pump
DSP type is the axially split case pump, single stage, double suction pump that is completely designed according to API610 10th and ISO13709 standard. DSP split case pump is designed as the BB1 construction type. DSP type split case pump is mainly used for petroleum (oil), crude oil, chemical liquid transferring and loading on land or offshore.
However, Hankia Pump also can offer tailor made pumps to meet the special requirement on working temperature, corrosive liquid, NPSHr and efficiency, etc. in the projects. If you have special request for API610 / ISO13709 (BB1 type) split case pump, do not hesitate to contact Hankia, we will present to you an optimized proposal.
Main designing features
- Double volute design for pumps with single head over 60m, compeletely balance the radial force and ensure reliable service and save your maintenace costs.
- Double suction impeller to avoid the axial thrust.
- Optional rotation for clockwise (CW) and anti-clockwise (CCW).
- Optional shaft sealing for single seal mecanical seal, double mechanical seal, cartridge mechanical seal.
- Optional stuffing box cooling jacket allow the pump to transfer high temperaure liquid.
- Bearing bracket with cooling jacket or finned shape cooled by fan to ensure long bearing life and stable pump working.
- Bearing lubrication is optional for grease, ring oiled, splashed systems or pressuriszed systems.
- Bearing type can be rolling element bearng and sleeve bearing.
- Complete stropes are machined already for your complete monitor system to the pump.
Main benefits
- Double suction impeller with optimum hydraulics optimized by CFD analysis and the fluid experts from Hankia Pump
- Low NPSHr and high efficiency at wide performance range.
- 3D design to ensure nice performance and excellent construction.
- Many choices for material, cast iron, cast steel, all stainless steel and duplex stainless steel, bronze for your different application.
- Wind performance range allow you to have a reasonable project design
- Excellent pumps with fast delivery.
- Compacted design allow you save your landing space.
- Long lifetime and easy mentenance.
Main application
- Transfering the crude oil, light oil, or other chemical liquid
- Oil loading from or to ships
- Fire fighting
- Steel plants
- Offshore projects and sea water
- Petrochemical plants and nuclear industry.
Basic service data
- Capacityup to 7000L/s (25200m3h), if you need special performance,Hankia Pump can offer tailor made pumps for your application
- Headup to 280m(920ft), if you need special performance,we can offer tailor made pumps for your application
- Working temperatureup to 210°C
- Design pressure1.6Mpa / 2.5Mpa /4.0Mpa which depends on the application.
- Nozzleup to 1400mm or tailor design. Flange standard can be DIN, ANSI or other standard.
Performance range

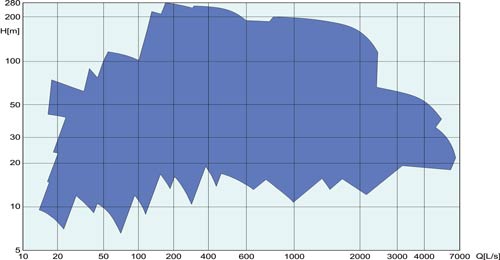

Performance range at 50Hz

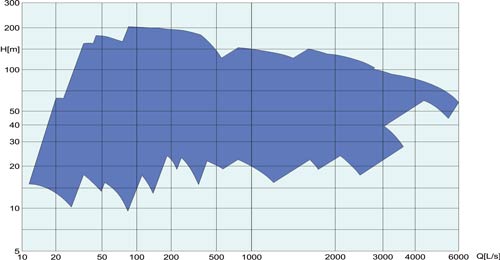

Performance range at 60Hz
